Caterpillar

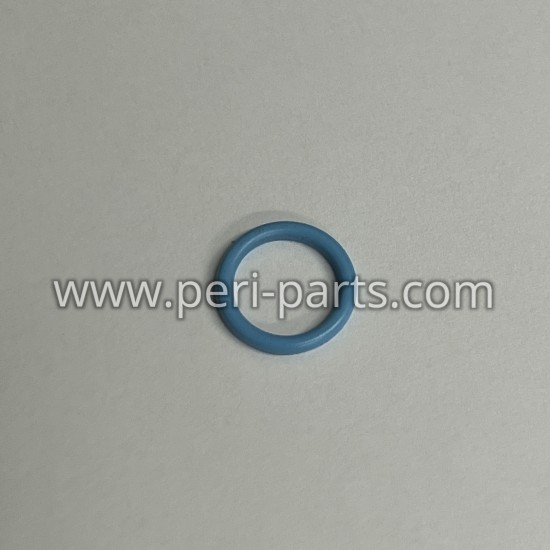

Part number 2147568 is an aftermarket STOR (Straight Thread O-Ring) seal designed for Caterpillar hydraulic systems. It fits SAE 9/16-18 threaded connections and is used to prevent fluid leakage in high-pressure applications such as lift trucks, engines, and fluid transfer systems.

This O-ring is manufactured from FKM (fluoroelastomer), offering excellent resistance to heat, oil, and hydraulic fluids. It meets dash size 906 specifications and is suitable for both static and dynamic joints.

Specifications: &nbsp;
&ndash; Part number: 2147568 &nbsp;
&ndash; Component type: STOR O-ring seal &nbsp;
&ndash; Application: Hydraulic sealing for SAE 9/16-18 threads &nbsp;
&ndash; Dash size: 906 &nbsp;
&ndash; Thread size: SAE 9/16-18 &nbsp;
&ndash; Material: FKM (fluoroelastomer) &nbsp;
&ndash; Temperature range: -40&deg;C to +150&deg;C &nbsp;
&ndash; Pressure rating: Up to 250 bar (system-dependent) &nbsp;
&ndash; Condition: New aftermarket &nbsp;
&ndash; Packaging: Bagged or boxed &nbsp;
&ndash; Quantity per unit: 1

Applications: &nbsp;
&ndash; Caterpillar lift trucks &nbsp;
&ndash; Hydraulic cylinders and valves &nbsp;
&ndash; Fluid transfer systems &nbsp;
&ndash; Engine sealing interfaces

Use cases: &nbsp;
&ndash; Seal replacement &nbsp;
&ndash; Hydraulic system maintenance &nbsp;
&ndash; Leak prevention

Key features: &nbsp;
&ndash; OEM-compatible dimensions and performance &nbsp;
&ndash; High-temperature and chemical resistance &nbsp;
&ndash; Suitable for static and dynamic joints &nbsp;
&ndash; Designed for SAE 9/16-18 threaded connections

Order 2147568 O-ring seal – aftermarket STOR seal for Caterpillar hydraulic systems. SAE 9/16-18 thread, dash 906. FKM construction. Fast global delivery from Peri-Parts.
